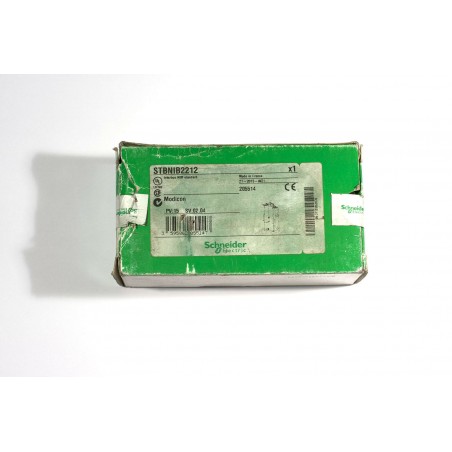

Schneider Electric STB Interbus Network interface module STBNIB2212
150,00 $
254381178093
На всё б/у оборудование предоставляется ограниченная шестимесячная гарантия. Перед оправкой всё оборудование тщательно тестируется и упаковывается в жесткие коробки и пазырчатую плёнку.
Для поставки по России и в пределах таможенного союза используются службы СДЭК, ЕМС, Желдорэкспедиция, Деловые Линии и ПЭК. При необходимости Вы можете отправить запрос на доставку другой транспортной компанией.
Возврат товаров принимается в течении 15 дней после получения.
Characteristics
Main
range of product
Modicon STB distributed I/O solution
product or component type
Standard Network Interface Module
integrated connection type
Interbus conforming to InterBus Club 9-way female isolated RS485 SUB-D 1 twisted shielded pair (output bus)
Interbus conforming to InterBus Club HE-13 (RS232 port)
Interbus conforming to InterBus Club 8-way female (RS232 port)
Interbus conforming to InterBus Club 9-way male isolated RS485 SUB-D 1 twisted shielded pair (input bus) number of segments 1 primary, maximum 6 extensions number of slave 0...512 transmission rate 500 kbit/s for bus length of 0...1312.34 ft (0...400 m) per bus segment between stations
500 kbit/s for bus length of 0...164.04 ft (0...50 m) for the installation bus
500 kbit/s for bus length of 0...41994.75 ft (0...12800 m) for the bus between stations structure type Industrial field bus (Generation4) Complementary number of addressable I/O module 0...32 per island communication service Diagnostics
Implicit exchange of process data
Logical addressing [Us] rated supply voltage 24 V DC power supply type SELV supply current >= 700 mA supply voltage limits 19.2...30 V input current 430 mA for supply circuit nominal output current 1.2 A
0.575 A (140...158 °F (60...70 °C)) output impedance
Interbus conforming to InterBus Club HE-13 (RS232 port)
Interbus conforming to InterBus Club 8-way female (RS232 port)
Interbus conforming to InterBus Club 9-way male isolated RS485 SUB-D 1 twisted shielded pair (input bus) number of segments 1 primary, maximum 6 extensions number of slave 0...512 transmission rate 500 kbit/s for bus length of 0...1312.34 ft (0...400 m) per bus segment between stations
500 kbit/s for bus length of 0...164.04 ft (0...50 m) for the installation bus
500 kbit/s for bus length of 0...41994.75 ft (0...12800 m) for the bus between stations structure type Industrial field bus (Generation4) Complementary number of addressable I/O module 0...32 per island communication service Diagnostics
Implicit exchange of process data
Logical addressing [Us] rated supply voltage 24 V DC power supply type SELV supply current >= 700 mA supply voltage limits 19.2...30 V input current 430 mA for supply circuit nominal output current 1.2 A
0.575 A (140...158 °F (60...70 °C)) output impedance
1 Шт.
Характеристики
- Brand
- Schneider Electric
- MPN
- STBNIB2212
- Custom Bundle
- No
- Modified Item
- No
- Non-Domestic Product
- No
