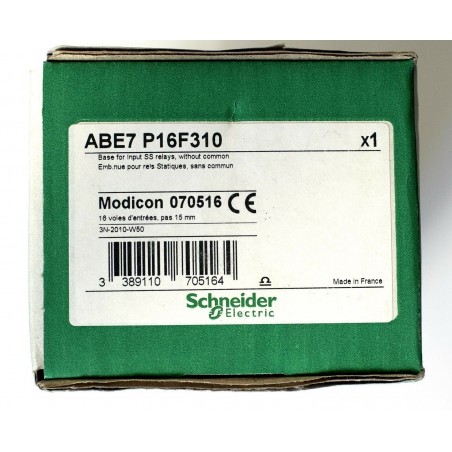

Schneider Electric Telemecanique sub-base for relay ABE7 P16F310 ABE7P16F310

ABE7P16F310 sub-base for plug-in relay ABE7 - 16 channels - relay 12.5 mm

Characteristics Main range of product Advantys Telefast ABE7 product or component type Sub-base for plug-in relay sub-base type Input sub-base [Us] rated supply voltage 19...30 V conforming to IEC 61131-2 number of channels 16 number of terminal per channel 2 connections - terminals Screw type terminals, clamping capacity: 1 x 0.09...1 x 1.5 mm², cable cross section: 0...0 in² (0.09...1.5 mm²) AWG 28...AWG 16 flexible with cable end
Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm², cable cross section: 0...0 in² (0.14...2.5 mm²) AWG 26...AWG 12 solid
Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm², cable cross section: 0...0 in² (0.14...2.5 mm²) AWG 26...AWG 14 flexible without cable end
Screw type terminals, clamping capacity: 2 x 0.09...2 x 0.75 mm², cable cross section: 0...0 in² (0.09...0.75 mm²) AWG 28...AWG 20 flexible with cable end
Screw type terminals, clamping capacity: 2 x 0.2...2 x 2.5 mm², cable cross section: 0...0 in² (0.2...2.5 mm²) AWG 24...AWG 14 solid Complementary supply circuit type DC product compatibility ABR7
ABS7E
ABS7S33E status LED 1 LED per channel, green channel status
1 LED, green power ON isolation PLC/operative part Yes polarity distribution Volt-free short circuit protection 1 A internal fuse, 5 x 20 mm, fast blow (PLC end) fixing mode By clips on 35 mm symmetrical DIN rail
By screws on solid plate with fixing kit supply current
