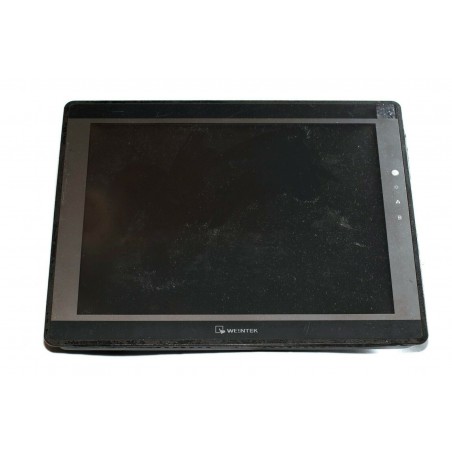

Weintek MT8150X X86 CPU Core touch panel computer with 15.0" XGA TFT display

MT8000 series is the new HMI generation of Weintek. With the design concept of meeting customers’ satisfaction while easy-to-Use attribute as before, a MT8000 not only performs as a Human Machine Interface but also plays as a role of data exchange center. Through the most popular Ethernet connection, data can be shared among MT8000s without limitation and any SCADA/HMI software on the PC can simply access data from MT8000s.MT8000 series is the best choice for your requirement tomorrow.
Hardware Specification Display 15.0" TFT Brightness 350 cd/m2 Color 65,536 colors Contrast Ratio 550:1 Resolution (W x H dots) 1024 x 768 Back Light CCFLx2 CCFL Life Time 50,000 hr. min. Touch Panel 4 wires resistive type Touch Accuracy Active Area Length(X)±2%, Width(Y)±2% Surface Hardness 4H I/O port COM1 (RS-232/RS-485 2W/4W), COM2(RS232), COM3(RS-232/RS-485 2W),1 Ethernet port (10/100 Base-T) Video Input Port NTSC/PAL RCA x 2 (Version 2 Only) USB Host 2 USB 2.0 Full Speed Host Port Audio Audio Line Out x 1, MIC In x 1 Processor x86 500MHz processor Storage 256MB D.O.M DRAM 256MB on board DDR-400MHz SDRAM SD card slot Support SDHC/SD RTC Built-in (CR2032 3V lithium battery backup.) General Specification Input Power 24±10% VDC (21.6~26.4VDC) (Power Isolator Inside.) Power Consumption 1.6 A@24VDC CE/FCC Complies with EN 55022: 1998+A1: 2000+A2: 2003 Class A, EN 61000-3-2: 2000+A2: 2005,EN 61000-3-3: 1995+A1: 2001, EN 55024: 1998+A1: 2001+A2: 2003 Voltage Resistance 500VAC (1 min.) Isolation Resistance Exceed 50Ω at 500VDC Vibration Endurance 10 to 25 Hz (X,Y,Z direction 2G 30mins) Protection Structure IP65 front panel (O ring seal) Storage temperature -20° ~ 60°C (-4° ~ 140°F) Operating Temperature 0°~50°C (32° ~ 122°F) Operation Humidity 10-90% RH (non –condensing) Enclosure Aluminum Dimensions WxHxD 366 x 293 x 57mm Panel Cutout Dimensions 352 x 279 mm Weight Approx. 2.9 kg Operating System Operating System EB8000 V4.1.0 or Newer
