NEW BALLUFF INDUCTIVE SENSOR BES01M6 BES 516-383-S49-C

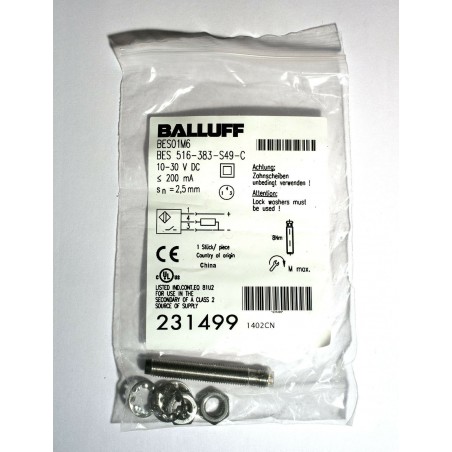

New, in factory sealed bag Balluff inductive sensor BES01M6 BES 516-383-S49-C



• Manufacturer: Balluff

• Order code: BES01M6

• BES 516-383-S49-C

• Dimensions : M08x1

• Connection : Connector, M08x1-S49

• Output function : PNP, Normally open (NO)

• Supply voltage : 10.0-30.0 V

• Mech. installation condition : Non embeddable

• Rated operating distance Sn [mm] : 2.50 mm

• Additional text : The sensor is functional again after the overload has been eliminated.

• Approvals / Conformity : CE
  cULus
  EAC

• Basic standard : IEC 60947-5-2

• Diagnostic Coverage : 0 %

• Enclosure Type per IEC 60529 : IP68 according to BWN PR 20

• Functional Safety : No

• Function indicator : Yes

• Mission Time : 20 a

• MTTF (40øC) : 830 a

• Polarity reversal protected : Yes

• Power indicator : No

• Product group : Inductive sensor

• Protection Class : II

• Short circuit protected : Yes

• Connection type : Connector

• Eff. operating current Ie : 200 mA

• Eff. operating voltage Ue DC : 24.0 V

• Electrical version : DC, direct current

• Load capacitance max. (at Ue) : 0.500 æF

• Max. no-load cur. Io undamped : 3.0 mA

• Minimum operating current Im : 0 mA

• No-load current Io damped max. : 9.0 mA

• Operating voltage UB max. DC [V] : 30.0 V

• Operating voltage UB min. DC [V] : 10.0 V

• Rated insulation voltage Ui : 250 VAC

• Rated short circuit current : 100 A

• Ripple max. (% of Ue) : 15 %

• Switching freq. f max. (at Ue) : 2000 Hz

• Switching function : Normally open (NO)

• Switching output : PNP

• Voltage drop static max. : 2.5 V

• Ambient temperature Ta max. : 70 øC

• Ambient temperature Ta min. : -25 øC

• Assured operating distance Sa : 2.00 mm

• Connector type : M08x1-S49

• Depth : 55.0 mm

• Diameter d1 : M08x1

• Eff. operating distance Sr : 2.50 mm

• Housing material : Stainless steel

• Mech. installation condition : Non embeddable

• Mounting length : 44.1 mm

• Rated operating distance Sn [mm] : 2.50 mm

• Sensing face material : PBT

• Tightening torque : 8 Nm
