NEW Sick Photoelectric proximity sensor, energetic VT180-N112 6008788
На всё б/у оборудование предоставляется ограниченная шестимесячная гарантия. Перед оправкой всё оборудование тщательно тестируется и упаковывается в жесткие коробки и пазырчатую плёнку.
Для поставки по России и в пределах таможенного союза используются службы СДЭК, ЕМС, Желдорэкспедиция, Деловые Линии и ПЭК. При необходимости Вы можете отправить запрос на доставку другой транспортной компанией.
Возврат товаров принимается в течении 15 дней после получения.
Sick Photoelectric proximity sensor, energetic VT180-N112 6008788

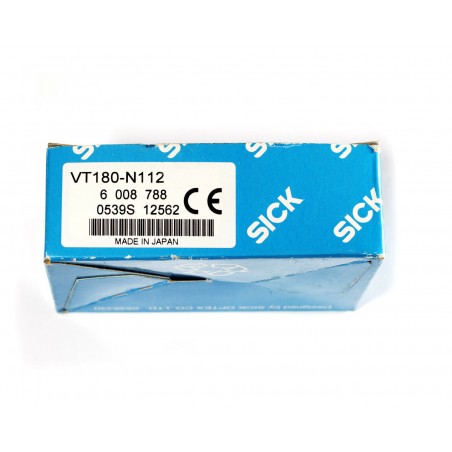

New, in factory box.
Typical delivery time:
Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 daysSensor/ detection principle Photoelectric proximity sensor, energetic Housing design (light emission) Cylindrical, straight Housing length 63.3 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 0 mm ... 130 mm 1) Sensing range 0 mm ... 110 mm 2) Type of light Infrared light Light source LED 3) Light spot size (distance) Ø 65 mm (110 mm) Wave length 920 nm Adjustment Potentiometer, 270° (Sensing range)
- 1) Object with 90 % reflectance (referred to standard white, DIN 5033).
- 2) With right-angle adapter, the sensing range is reduced from 110 mm to 100 mm.
- 3) Average service life: 100,000 h at TU = +25 °C.
-
Supply voltage
10 V DC ... 30 V DC 1)
Ripple
± 5 Vpp 2)
Power consumption
30 3)
Switching output
NPN 4)
Switching mode
Light/dark switching 4)
Switching mode selector
Selectable via L/D control cable
Signal voltage NPN HIGH/LOW
Approx. VS / < 1.0 V
Output current Imax.
≤ 100 mA
Response time
≤ 1.5 ms 5)
Switching frequency
333 Hz 6)
Connection type
Cable, 4-wire, 2 m 7)
Cable material
PVC
Conductor cross-section
0.18 mm²
Cable diameter
Ø 3.8 mm
Circuit protection
A 8)
C 9)
D 10)
Protection class III Weight 125 g Housing material Metal, Nickel-plated brass, PBT/PC Optics material Plastic, PMMA Enclosure rating IP66 Items supplied Fastening nuts (2 x) Ambient operating temperature –25 °C ... +55 °C Ambient storage temperature –40 °C ... +70 °C UL File No. NRNT2.E128350 & NRNT8.E128350- 1) Limit values.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) Control wire open: light switching L.ON.
- 5) Signal transit time with resistive load.
- 6) With light/dark ratio 1:1.
- 7) Do not bend below 0 °C.
- 8) A = VS connections reverse-polarity protected.
- 9) C = interference suppression.
- 10) D = outputs overcurrent and short-circuit protected.
Характеристики
- Brand
- Sick
- MPN
- VT180-N112
