STS ATM 101093 pressure sensor 4 .. 20 mA 0 .. 50 bar 0 .. 70C

STS ATM 101093 pressure sensor 4 .. 20 mA 0 .. 50 bar 0 .. 70C

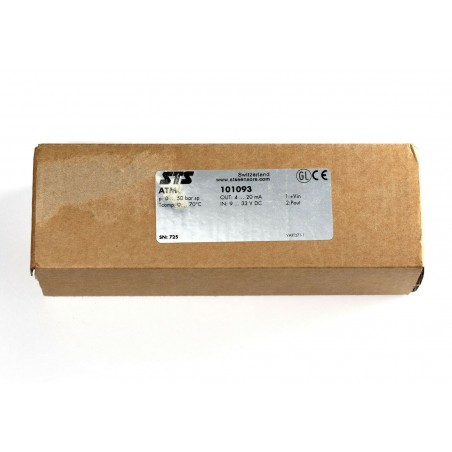

New, in factory box.

ATM - Analog Pressure Transmitter

Pressure measuring range (bar)

  0.1 ... 0.5, (1) > 0.5 … 2 > 2 … 25 Overpressure 3 bar 3 x FS (≥ 3 bar) 3 x FS Burst pressure, (5) > 200 bar > 200 bar > 200 bar Accuracy, (6) (± % FS) ≤ 0.5 / ≤ 0.25 ≤ 0.5 / ≤ 0.25 / ≤ 0.1 ≤ 0.5 / ≤ 0.25 / ≤ 0.1 Thermal shift
(± % FS/°C)       Zero point 0 ... 70°C ≤ 0.06 ≤ 0.03 ≤ 0.015 Zero point -25 … 85°C ≤ 0.08 ≤ 0.04 ≤ 0.02 Span 0 … 70°C ≤ 0.015 ≤ 0.015 ≤ 0.015 Span -25 … 85°C ≤ 0.02 ≤ 0.02 ≤ 0.02 Response time, (typ.) < 1ms / 10 ... 90% FS < 1ms / 10 ... 90% FS < 1ms / 10 ... 90% FS Long term stability, (7) < 0.5% FS / < 4 mbar < 0.2% FS / < 4 mbar < 0.1% FS / < 0.2% FS   > 25 … 600, (2), (4) > 600 … 1000, (2), (3) Overpressure 3 x FS (≤ 850 / ≤ 1500 bar) 1500 bar Burst pressure, (5) > 850 / ≤ 1500 bar > 1500 bar Accuracy, (6) (± % FS) ≤ 0.5 / ≤ 0.25 / ≤ 0.1 ≤ 1 / ≤ 0.5 / ≤ 0.25 Thermal shift
(± % FS/°C)     Zero point 0 ... 70°C ≤ 0.015 ≤ 0.015 Zero point -25 … 85°C ≤ 0.02 ≤ 0.02 Span 0 … 70°C ≤ 0.015 ≤ 0.015 Span -25 … 85°C ≤ 0.02 ≤ 0.02 Response time, (typ.) < 1ms / 10 ... 90% FS < 1ms / 10 ... 90% FS Long term stability, (7) < 0.1% FS / < 0.2% FS < 0.1% FS / < 0.2% FS

Temperature range

    Operating temperature -25 ... 85°C Process temperatur -40 ... 150°C Storage temperatur -25 ... 85°C
