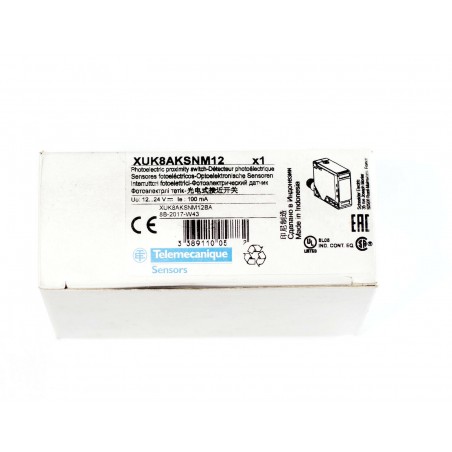

Schneider Electric Telemecinique Osiris XUK8AKSNM12 laser proximity sensor

Main range of product OsiSense XU series name General purpose single mode electronic sensor type Photo-electric sensor sensor name XUK sensor design Compact 50 x 50 detection system Diffuse with background suppression material Plastic type of output signal Discrete supply circuit type DC wiring technique 3-wire discrete output type PNP or NPN discrete output function 1 NO or 1 NC programmable electrical connection 1 male connector M12, 4 pins product specific application - emission Infrared laser, modulated diffuse with background suppression (class 1) [Sn] nominal sensing distance 3.28 ft (1 m) diffuse with background suppression Complementary enclosure material PC lens material PMMA maximum sensing distance 3.28 ft (1 m) diffuse with background suppression minimum object diameter for detection 0.08 in (2 mm) output type Solid state wire insulation material PVC status LED 1 LED (green) supply
1 LED (yellow) output state [Us] rated supply voltage 12...24 V DC with reverse polarity protection supply voltage limits 10...36 V DC switching capacity in mA
