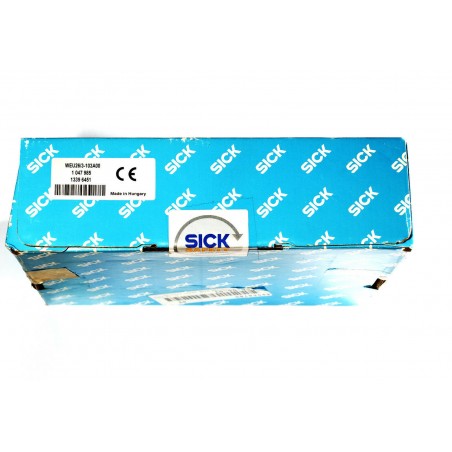

NEW Sick Single-beam photoelectric safety switch WEU26/3-103A00

Single-beam photoelectric safety switch WSU/WEU26-3 / Sender/receiver Receiver Sender.

Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days



Scanning range 15 m ... 70 m Number of beams 1 Detection capability 30 mm Response time ≤ 22 ms Front screen heating ✔ Synchronization Optical synchronisation

Type Type 4 (IEC 61496) Safety integrity level

SIL3 (IEC 61508)

SILCL3 (EN 62061)

Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) B10d parameter 1 x 106 switching cycles (AC-15, 230 V, 0.4 A), 2.6 x 105 switching cycles (AC-15, 230 V, 2.0 A), 1 x 106 switching cycles (DC-13, 24 V, 0.6 A), 2 x 105 switching cycles (DC-13, 24 V, 1.5 A) PFHD (mean probability of a dangerous failure per hour) 4.0 x 10-9 (EN ISO 13849) TM (mission time) 20 years (EN ISO 13849) Safe state in the event of a fault At least one OSSD is in the OFF state. Connection type PG gland (13,5) Diagnostic display LEDs Fieldbus, industrial network Integration via Flexi Soft safety controller CANopen, DeviceNet™, EtherCAT®, EtherNet/IP™, Modbus TCP, PROFIBUS DP, PROFINET 1) Protection class I (EN 50178) Supply voltage VS 24 V DC (19.2 V DC ... 28.8 V DC) Power consumption 8 W / 6 W Switch-on time ≤ 10 s 1) Test input Volt-free N/C contact Switching outputs Relays Usage category AC-15/DC-13 (EN 60947-5-1) Switching voltage

10 V DC ... 30 V DC

10 V AC ... 230 V AC

Switching current 0.02 A ... 2 A Contact material Ag alloy with Au coating Electrical life (relay contacts) ≥ 1 x 105 switching cycles Mechanical life (relay contacts) ≥ 1 x 107 switching cycles

• 1) Upon applying the supply voltage.
• Design Rectangular Dimensions (W x H x D) 50 mm x 156 mm x 116 mm Housing material Aluminum die cast Front screen material Polycarbonate, scratch-resistant coating Weight 1 kg

Enclosure rating IP67 (EN 60529) Ambient operating temperature –25 °C ... +55 °C Storage temperature –25 °C ... +75 °C Air humidity 15 % ... 95 %, Non-condensing Vibration resistance 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6) Shock resistance 10 g, 16 ms (IEC 60068-2-29) Type of light Infrared light Wave length 950 nm
