ICP DAS ICP CON I-7041D 14-channel Isolated Digital Input Module RS-485 MODBUS
search
  • ICP DAS ICP CON I-7041D 14-channel Isolated Digital Input Module RS-485 MODBUS

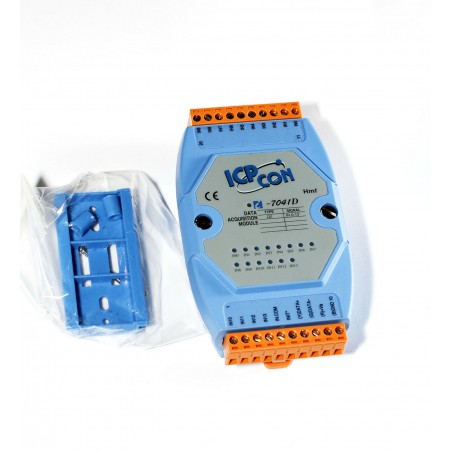

ICP DAS ICP CON I-7041D 14-channel Isolated Digital Input Module RS-485 MODBUS

$30.00
254409838531
Quantity
Last items in stock



We provide 6-month warranty for all used products. Before shipping all products carefully tested and packed in hard box with bubble wrap. If you pay with PayPal you can use buyer protection program.



For shipping we use EMS express post (delivery within 5-20 days). By additional request we can use DHL, UPS or FEDex services. In this case price for shipping will be calculated individually.



We accept returns within 15 days after receiving goods.

ICP DAS ICP CON I-7041D 14-channel Isolated Digital Input Module with RS-485 and MODBUS.

Features:

  • Sink- or Source-type Digital Input
  • Photocouple Isolation
  • All Channels can be used as 16-bit Counters
  • ±4 kV ESD Protection
  • 3750 VDC Isolation Voltage
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C

Applications:

  • All Types of On/Off Control
  • Industrial Automation
  • Industrial Machinery
  • Building Automation
  • Food and Beverage Systems
  • Semiconductor Fabrication
  • Control Systems

Models I-7041 M-7041 I-7041P M-7041P I-7041D M-7041D I-7041PD M-7041PD Digital Input/Counter Channels 14 Type Dry Contact - Wet Contact Sink/Source Wet Contact On Voltage Level +1 VDC Max. +4 ~ 30 VDC +11 VDC Max. +19 ~ 30 VDC Off Voltage Level +4 ~ 30 VDC +1 VDC Max. +19 ~ 30 VDC +11 VDC Max. Dry Contact On Voltage Level - Off Voltage Level - Effective Distance
for Dry Contact - Counters Max. Count 65535 (16-bit) Max. Input Frequency 100 Hz Min. Pulse Width 5 ms Input Impedance 3 KΩ Channel to Channel Isolation - Overvoltage Protection ±35 VDC



Models I-7041 M-7041 I-7041P M-7041P I-7041D M-7041D I-7041PD M-7041PD Communication Interface RS-485 Format N, 8, 1 Baud Rate 1200 ~ 115200 bps Protocol DCON Modbus RTU, DCON DCON Modbus RTU, DCON Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable) LED Indicator/Display System LED Indicator Yes, 1 LED as Power/Communication Indicator I/O LED Indicator - Yes, 14 LEDs as Digital Input Indicators 7-Segment LED Display - Isolation Intra-Module Isolation, Field-to-Logic 3750 VDC EMS Protection ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal ±8 kV Air for Random Point EFT (IEC 61000-4-4) ±2 kV for Power Line Surge (IEC 61000-4-5) - Power Reverse Polarity Protection Yes Input Range 10 ~ 30 VDC Consumption 0.2 W 0.2 W 0.2 W 0.2 W 1.0 W 1.0 W 1.0 W 1.0 W Mechanical Dimensions (W x L x H) 72 mm x 123 mm x 35 mm Installation DIN-Rail or Wall Mounting Environment Operating Temperature -25 ~ +75°C Storage Temperature -40 ~ +85°C Humidity 10 ~ 95% RH, Non-condensing

New, without factory box.


Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days
1 Item

Data sheet

Brand
ICP DAS
MPN
I-7041D
Controller Platform
ICP CON
Country/Region of Manufacture
Taiwan
