ICP DAS ICP CON I-7012FD Analog Input Module Voltage Current RS-485 MODBUS

$149.00
254447497789
Quantity
Last items in stock



We provide 6-month warranty for all used products. Before shipping all products carefully tested and packed in hard box with bubble wrap. If you pay with PayPal you can use buyer protection program.



For shipping we use EMS express post (delivery within 5-20 days). By additional request we can use DHL, UPS or FEDex services. In this case price for shipping will be calculated individually.



We accept returns within 15 days after receiving goods.

ICP DAS ICP CON I-7012FD Analog Input Module Voltage Current RS-485 MODBUS.

Features:

  • Current or Voltage Input
  • High Resolution: 16-bit
  • High/Low Alarm (Digital Output)
  • 50 Hz Event Counter (Digital Input)
  • 100 Hz High Sampling Rate
  • 3000 VDC Intra-module Isolation
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 to +75°C

The I-7012 is an Analog Input module that is designed for both voltage and current input types. In addition, the module provides 1 Digital Input channel as a 50 Hz event counter and 2 Digital Output channels that can be used as a high/low alarm. The I-7012 also features 3000 VDC intra-module isolation.

The I-7012F is an Analog Input module that is designed for both voltage and current input types. The sampling rate for the I-7012F is adjustable and can be switched between fast mode and normal mode depending on your requirements. In addition, the module provides 1 Digital Input channel as a 50 Hz event counter and 2 Digital Output channels that can be used as a high/low alarm. The I-7012F also features 3000 VDC intra-module isolation.



Applications:

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment

Models I-7012 I-7012D I-7012F I-7012FD Analog Input Channels 1 Wiring Differential Input Range ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA (requires optional external 125 Ω resistor) Resolution 16-bit Accuracy Normal Mode 0.1% Fast Mode - 0.5% Sampling Rate Normal Mode 10 Hz Fast Mode - 100 Hz Input Impedance 20 MΩ Common Voltage Protection ±100 VDC Individual Channel Configuration - Overvoltage Protection ±120 VDC Digital Input Channels 1 Contact Dry Sink/Source (NPN/PNP) Source ON Voltage Level Close to GND OFF Voltage Level Open Counter Yes, 50 Hz, 16-bit Input Impedance 3 kΩ Overvoltage Protection ±30 VDC Digital Output Channels 2 Type Open Collector Sink/Source (NPN/PNP) Sink Load Voltage +3.5 ~ +30 VDC Max. Load Current 30 mA/Channel Power-on Value Yes Safe Value Yes

Models I-7012 I-7012D I-7012F I-7012FD Communication Interface RS-485 RS-485 Bias Resistor No (An RS-485 master is required to provide the bias.) Format N, 8, 1 Baud Rate 1200 ~ 115200 bps Protocol DCON Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable) LED Indicator/Display System LED Indicator Yes, 1 as Power/Communication Indicator I/O LED Indicator - 7-Segment LED Display - Yes - Yes Isolation Intra-Module Isolation, Field-to-Logic 3000 VDC EMS Protection ESD (IEC 61000-4-2) ±2 kV Contact for each Terminal EFT (IEC 61000-4-4) ±4 kV to Power Line Surge (IEC 61000-4-5) ±0.5 kV for Power Line Power Reverse Polarity Protection Yes Input Range +10 ~ +30 VDC Consumption 1.3 W 1.9 W 1.3 W 1.9 W Mechanical Dimensions (L x W x H) 123 mm x 72 mm x 35 mm Installation DIN-Rail or Wall Mounting Environment Operating Temperature -25 ~ +75°C Storage Temperature -40 ~ +85°C Humidity 10 ~ 95% RH, Non-condensing

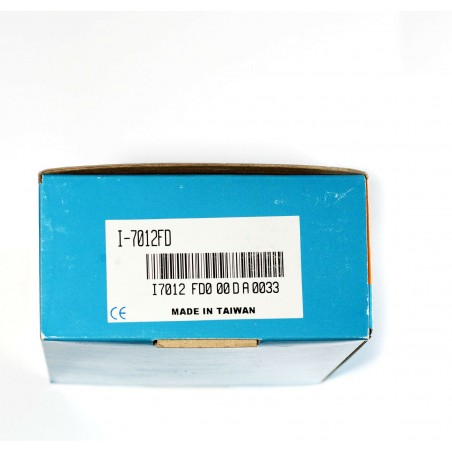

New, in opened package.


Typical delivery time:

  Economy shipping (Russian Post) Standard Shipping (EMS Express Post) Europe 14-30 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days United States 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Canada 14-30 days, in rare cases up to 60 days 7-30 days, in rare cases up to 60 days Asia, India, Africa 14-40 days, in rare cases up to 60 days 7-20 days, in very rare cases up to 60 days Australia and Oceania 14-40 days, in rare cases up to 60 days 10-25 days, in rare cases up to 60 days South and Central America 20-60 days, in rare cases up to 80 days 14-30 days, in rare cases up to 60 days Other countries 20-60 days, in rare cases up to 80 days 10-30 days, in rare cases up to 70 days
1 Item

Data sheet

Brand
ICP DAS
MPN
I-7012FD
Model
1-channel Analog Input Module
Controller Platform
ICP CON
