ICD DAS ICP CON I-7011 Analog Thermocouple Input Module RS-485 MODBUS

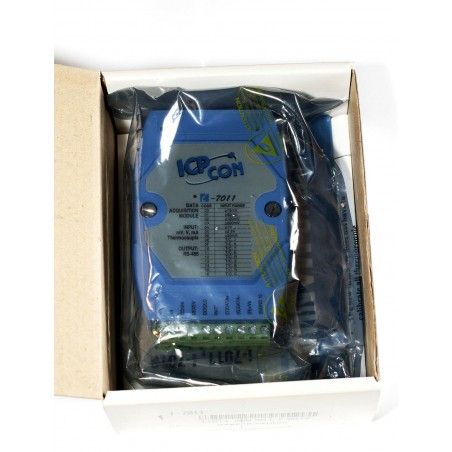

ICD DAS ICP CON I-7011 Analog Thermocouple Input Module with RS-485 MODBUS.

The I-7011 series of modules feature current and voltage input, as well as thermocouple input. The module provides 1-channel Analog Input, 1-channel Digital Input that functions as a 50 Hz event counter, and 2-channel Digital Output that can be used as a high/low alarm. The module also features open wire detection for the thermocouple input, and 3000 VDC intra-module isolation. The M-7011 supports both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7011. The I-7011P provides support for two additional thermocouple types, L and M.

• 1-channel Analog Input
• Current, Voltage or Thermocouple Input
• Open Thermocouple Detection
• High Resolution: 16-bit
• 1-channel Digital Input as 50 Hz Event Counter
• 1-channel Digital Output as High/Low Alarm
• 3000 VDC Intra-module Isolation
• Dual Watchdog
• Wide Operating Temperature Range: -25 to +75°C

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Models I-7011 I-7011P M-7011 I-7011D I-7011PD M-7011D Analog Input Channels 1 Wiring Differential Sensor Types Thermocouple J, K, T, E, R, S, B, N, C J, K, T, E, R, S, B, N, C, L, M J, K, T, E, R, S, B, N, C Voltage ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V Current ±20 mA (requires optional external 125 Ω resistor) Resolution 16-bit Accuracy 0.1% of FSR Sampling Rate 10 Hz (Total) Input Impedance > 400 kΩ Common Voltage Protection ±5 VDC Individual Channel Configuration - Overvoltage Protection ±5 VDC Open Wire Detection
(for thermocouple only) Yes Temperature Output Consistency - Stable Temperature Output in the Field - Digital Input Channels 1 Contact Dry Sink/Source (NPN/PNP) Source ON Voltage Level Close to GND OFF Voltage Level Open Counter Yes Input Impedance 3 kΩ Overvoltage Protection ±30 VDC Digital Output Channels 2 Type Open Collector Sink/Source (NPN/PNP) Sink Load Voltage +3.5 ~ +30 VDC Max. Load Current 30 mA/Channel Power-on Value Yes Safe Value Yes

Models I-7011 I-7011P M-7011 I-7011D I-7011PD M-7011D Communication Interface RS-485 Bias Resistor No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) Format N, 8, 1 Baud Rate 1200 to 115200 bps Protocol DCON Modbus RTU, DCON Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable) LED Indicator/Display System LED Indicator Yes, 1 as Power/Communication Indicator I/O LED Indicator - 7-Segment LED Display - Yes Isolation Intra-Module Isolation, Field-to-Logic 3000 VDC EMS Protection ESD (IEC 61000-4-2) ±2 kV Contact for each Terminal EFT (IEC 61000-4-4) ±4 kV to Power Line Surge (IEC 61000-4-5) ±0.5 kV for Power Line Power Reverse Polarity Protection Yes Input Range +10 ~ +30 VDC Consumption 0.9 W 1.5 W Mechanical Dimensions (L x W x H) 123 mm x 72 mm x 35 mm Installation DIN-Rail or Wall Mounting Environment Operating Temperature -25 to +75°C Storage Temperature -40 to +85°C Humidity 10 to 95% RH, Non-condensing
