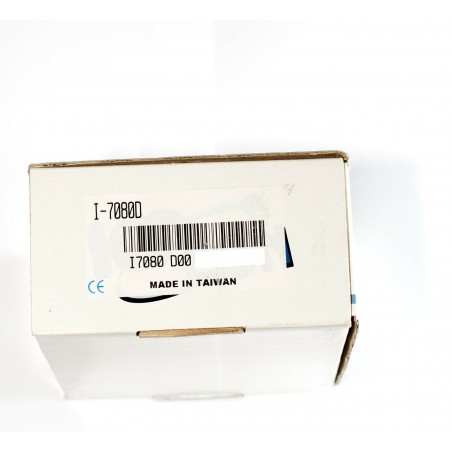

ICP DAS ICP CON I-7080D 2-channel 32-bit Counter/Frequency Input RS-485 MODBUS

ICP DAS ICP CON I-7080D 2-channel 32-bit Counter/Frequency Input with RS-485 MODBUS.

The I-7080 offers 2 high speed counter or frequency input channels and 2 digital output channels. Two types of digital input are provided, one for isolated input, and the other is for non-isolated input. The isolated input provides 3750 Vrms isolation voltage and the non-isolated input provides programmable threshold voltage level. The built-in digital filter is valid for both non-isolated and isolated input and can filter out noise where the high/low pulse width is smaller than the minimum high/low width of the digital filter. The maximum count is up to 32-bit and the maximum frequency is up to 100 kHz. The module also provides programmable alarm output with non-isolated open collectors. The M-7080 supports both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7080. The functions of the I-7080B are the same as that of the I-7080, except that the I-7080B provides a virtual battery backup function in counter mode.

• 2-channel Counter/Frequency Input
• 32-bit Counter
• Isolated or Non-isolated Input
• Programmable Alarm Output
• Programmable Digital Filter
• Programmable Threshold Voltage Level
• Maximum Frequency of up to 100 kHz
• Built-in Virtual Battery Backup to Preserve Counter Values
  (I-7080B(D), M-7080B(D))
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Models I-7080/I-7080D I-7080B/I-7080BD M-7080/M-7080D M-7080B/M-7080BD Frequency/Counter Input Channels 2 Contact Wet Sink/Source (NPN/PNP) Sink On Voltage Level Isolated +3.5 ~ +30 VDC Non-isolated +2.4 ~ +5 VDC Off Voltage Level +1 VDC Max. Programmable Filter 2 μs to 65 ms Programmable Threshold Voltage +0.1 ~ +5 VDC Individual Channel Configuration No Counter/Encoder-bits 32-bit Counter Mode Up Encoder Mode - Frequency Mode Yes Virtual Battery Backup - Yes - Yes Frequency Accuracy 1 Hz or 10 Hz Max. Speed 100 KHz Digital Output Channels 2 Type Open Collector Sink/Source (NPN/PNP) Sink Load Voltage +3.5 ~ +30 VDC Max. Load Current 30 mA/Channel

Models I-7080 I-7080D I-7080B I-7080BD M-7080 M-7080D M-7080B M-7080BD Communication Interface RS-485 Format (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) Baud Rate 1200 ~ 115200 bps Protocol DCON Modbus RTU, DCON Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable) LED Indicator/Display System LED Indicator Yes, 1 LED as Power/Communication Indicator I/O LED Indicator - 7-Segment LED Display - Yes - Yes - Yes - Yes Isolation Intra-Module Isolation, Field-to-Logic 3000 VDC EMS Protection ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal EFT (IEC 61000-4-4) ±4 kV for Power Line Surge (IEC 61000-4-5) ±0.5 kV for Power Line Power Reverse Polarity Protection Yes Input Range 10 ~ 30 VDC 24 ~ 30 VDC 10 ~ 30 VDC 24 ~ 30 VDC Consumption 2.0 W 2.2 W 2.0 W 2.2 W 2.0 W 2.2 W 2.0 W 2.2 W Mechanical Dimensions (W x L x H) 72 mm x 123 mm x 35 mm Installation DIN-Rail or Wall Mounting Environment Operating Temperature -25 ~ +75°C Storage Temperature -40 ~ +85°C Humidity 10 ~ 95% RH, Non-condensing

New, in opened package.
