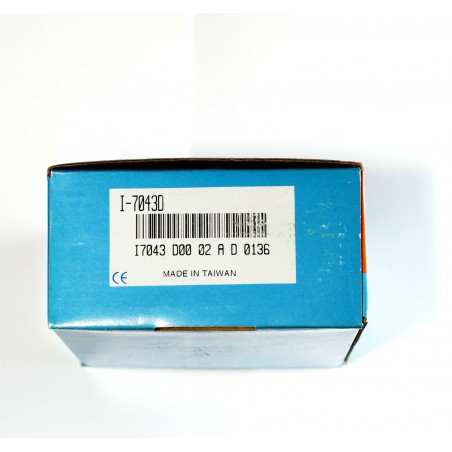

ICP DAS ICP CON I-7043D 16-channel Open Collector Discrete Output RS-485 MODBUS

ICP DAS ICP CON I-7043D 16-channel Open Collector Discrete Output with RS-485 MODBUS.

Features:

• I-7043/I-7043D/M-7043/M-7043D
  • 16-channel Open Collector Output
  • Non-isolated for all channels
• Sink-type Digital Outputs
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Dual Watchdog
• Wide Operating Temperature Range: -25 to +75°C

The I-7043 offers 16 digital output channels, each of which are non-isolated and support sink-type output using an open collector. There are also options to enable both power-on and safe values. The I-7043D has 16 LED indicators that can be used to monitor the status of DO channels. The hardware specifications for the M-7043 are the same as the I-7043, and both support the Modbus RTU and DCON protocols, which can be configured via software.
Applications:

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Models I-7042 I-7043 M-7043 I-7042D I-7043D M-7043D Digital Output Channels 13 16 Type Open Collector Sink/Source (NPN/PNP) Sink Load Voltage +3.5 ~ 30 VDC +10 ~ 30 VDC Max. Load Current 100 mA/Channel Overvoltage Protection - Overload Protection - Power-on Value Yes Safe Value Yes

Models I-7042 I-7043 M-7043 I-7042D I-7043D M-7043D Communication Interface RS-485 Bias Resistor No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) Format (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) Baud Rate 1200 to 115200 bps Protocol DCON Modbus RTU, DCON Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable) LED Indicator/Display System LED Indicator Yes, 1 LED as Power/Communication Indicator I/O LED Indicator - - - Yes, 13 LEDs as Digital Output Indicators Yes, 16 LEDs as Digital Output Indicators Yes, 16 LED as Digital Output Indicator 7-Segment LED Display - Isolation Intra-Module Isolation, Field-to-Logic 3750 Vrms - EMS Protection ESD (IEC 61000-4-2) ±2 kV Contact for each Terminal - ±4 kV Air for Random Point - EFT (IEC 61000-4-4) ±2 kV for Power Line - Surge (IEC 61000-4-5) - Power Reverse Polarity Protection Yes Input Range 10 ~ 30 VDC Consumption 1.0 W 0.4 W 0.4 W 1.7 W 1.1 W 1.1 W Mechanical Dimensions (L x W x H) 123 mm x 72 mm x 35 mm Installation DIN-Rail or Wall Mounting Environment Operating Temperature -25 to +75°C Storage Temperature -40 to +85°C Humidity 10 to 95% RH, Non-condensing

New, in opened package.
