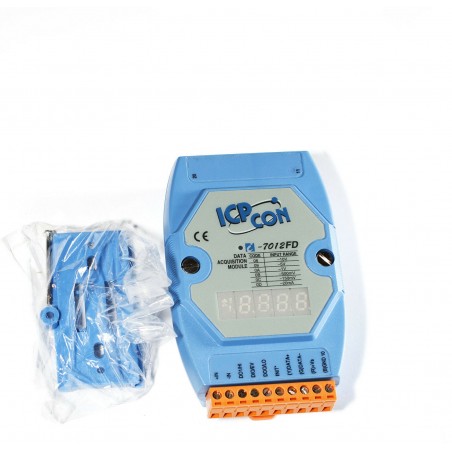

ICP DAS ICP CON I-7012FD Analog Input Module Voltage Current RS-485 MODBUS

ICP DAS ICP CON I-7012FD Analog Input Module Voltage Current RS-485 MODBUS.

Features:

• Current or Voltage Input
• High Resolution: 16-bit
• High/Low Alarm (Digital Output)
• 50 Hz Event Counter (Digital Input)
• 100 Hz High Sampling Rate
• 3000 VDC Intra-module Isolation
• Dual Watchdog
• Wide Operating Temperature Range: -25 to +75°C

The I-7012 is an Analog Input module that is designed for both voltage and current input types. In addition, the module provides 1 Digital Input channel as a 50 Hz event counter and 2 Digital Output channels that can be used as a high/low alarm. The I-7012 also features 3000 VDC intra-module isolation.

The I-7012F is an Analog Input module that is designed for both voltage and current input types. The sampling rate for the I-7012F is adjustable and can be switched between fast mode and normal mode depending on your requirements. In addition, the module provides 1 Digital Input channel as a 50 Hz event counter and 2 Digital Output channels that can be used as a high/low alarm. The I-7012F also features 3000 VDC intra-module isolation.



Applications:

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Models I-7012 I-7012D I-7012F I-7012FD Analog Input Channels 1 Wiring Differential Input Range ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA (requires optional external 125 Ω resistor) Resolution 16-bit Accuracy Normal Mode 0.1% Fast Mode - 0.5% Sampling Rate Normal Mode 10 Hz Fast Mode - 100 Hz Input Impedance 20 MΩ Common Voltage Protection ±100 VDC Individual Channel Configuration - Overvoltage Protection ±120 VDC Digital Input Channels 1 Contact Dry Sink/Source (NPN/PNP) Source ON Voltage Level Close to GND OFF Voltage Level Open Counter Yes, 50 Hz, 16-bit Input Impedance 3 kΩ Overvoltage Protection ±30 VDC Digital Output Channels 2 Type Open Collector Sink/Source (NPN/PNP) Sink Load Voltage +3.5 ~ +30 VDC Max. Load Current 30 mA/Channel Power-on Value Yes Safe Value Yes

Models I-7012 I-7012D I-7012F I-7012FD Communication Interface RS-485 RS-485 Bias Resistor No (An RS-485 master is required to provide the bias.) Format N, 8, 1 Baud Rate 1200 ~ 115200 bps Protocol DCON Dual Watchdog Yes, Module (1.6 Seconds), Communication (Programmable) LED Indicator/Display System LED Indicator Yes, 1 as Power/Communication Indicator I/O LED Indicator - 7-Segment LED Display - Yes - Yes Isolation Intra-Module Isolation, Field-to-Logic 3000 VDC EMS Protection ESD (IEC 61000-4-2) ±2 kV Contact for each Terminal EFT (IEC 61000-4-4) ±4 kV to Power Line Surge (IEC 61000-4-5) ±0.5 kV for Power Line Power Reverse Polarity Protection Yes Input Range +10 ~ +30 VDC Consumption 1.3 W 1.9 W 1.3 W 1.9 W Mechanical Dimensions (L x W x H) 123 mm x 72 mm x 35 mm Installation DIN-Rail or Wall Mounting Environment Operating Temperature -25 ~ +75°C Storage Temperature -40 ~ +85°C Humidity 10 ~ 95% RH, Non-condensing
